Project: 1 Project 1: Revit Modeling & Documentation
Computer Application
Working Process

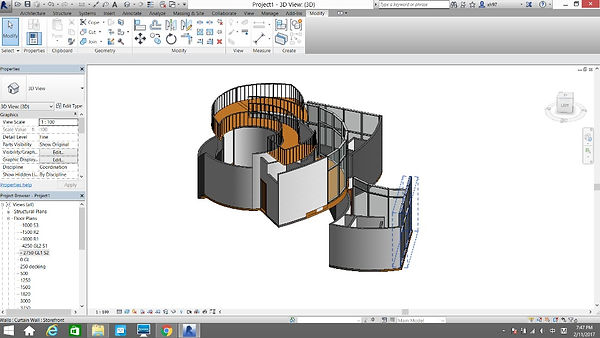

Form ( walls,flooring)
My chosen building is a very organic building. It is curved so i have to trace it from the plan. I imported the plan in to revit and trace on one floor. Once it is done, i change the height of the walls and do the flooring.
Curved walls ( different height at both ends)
Glass Dome Roof
establishing Grid lines for columns to support roof

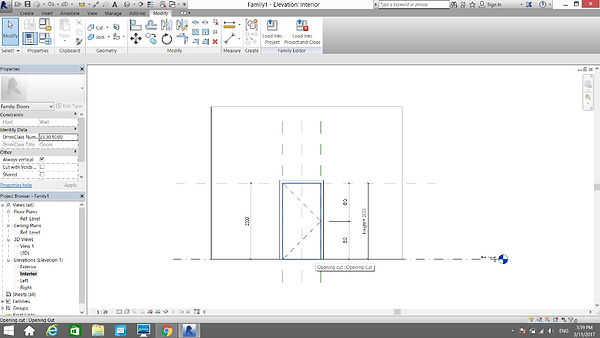

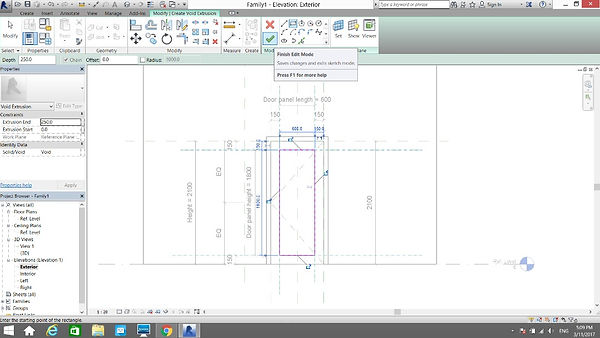

Family (Sliding Door)

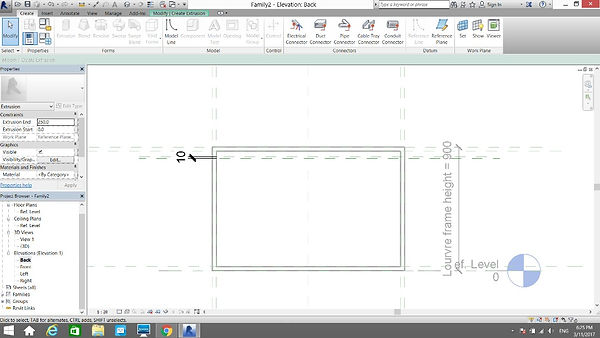

Family ( louvre )
Documentation
​
Project: 2 Exterior and interior rendering
1_ import revit file in to 3Ds max
​
2) Assign Renderer
First test render
3) setting environment and effect
Exposure control
ev value :15,000
Renderer review
4) Light setting- vray sun
w= move
w= move
shift sun to low angle for evening effect
4. Vray material download

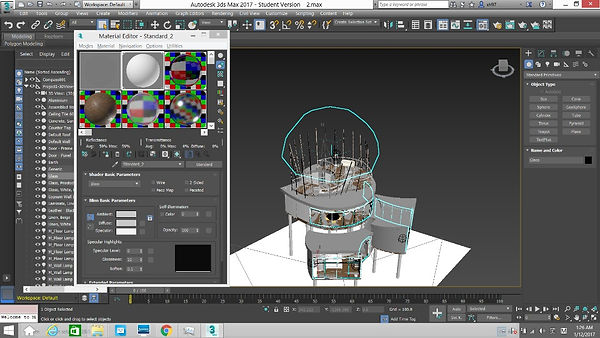

5. Material setting using vray materials
Load material into 3ds max
uvw map
Untick real world size
5) Camera setting (physical camera )
​
​physical camera setting
set eye level : 1,500 mm
focal length 25
width 30
c = camera
subdivision:200
photoshop rendering
Outcome
Change to mental ray renderer
Type m to change materials
change all vray materials to mental ray materials
Interior camera positioning
Choose arch and design, select templete and colour
Final outcome
Change materials with uvw map
